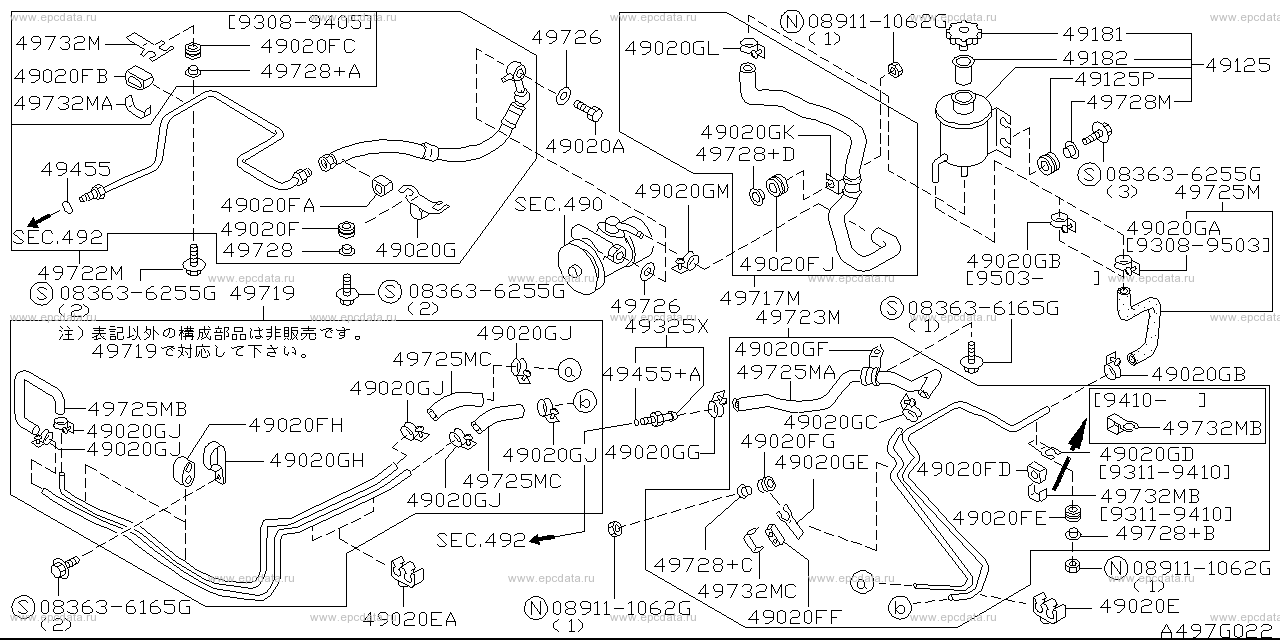

497 - power steering piping (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
2WD.CD20T.(FX+FX/R+SX).AT +2WD.CD20T.MT +CD20	05.1994 - 01.1997

Open full screen picture Up to the top

083636165G 083636255G 089111062G 49020A - bolt 49020E - clip 49020EA - clip 49020F - insulator 49020FA - insulator 49020FB - insulator 49020FC - insulator 49020FD - insulator 49020FE - insulator 49020FF - insulator 49020FG - insulator 49020FH - insulator 49020FJ - insulator 49020G - clamp 49020GA - clamp 49020GB - clamp 49020GC - clamp 49020GD - clamp 49020GE - clamp 49020GF - clamp 49020GG - clamp 49020GH - clamp 49020GJ - clamp 49020GK - clamp 49020GL - clamp 49020GM - clamp 49125 - tank assembly, reservoir 49125P - insulator 49181 - cap assembly, pump 49182 - filter assembly, pump 49325X - port assembly, drain power steering 49455 - seal,O ring 49455+A - seal,O ring 49717M - hose assembly, suction power steering 49719 - tube assembly, power steering 49722M - hose & tube assembly, pressure PS 49723M - hose & tube assembly, power steering 49725M - hose, return power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49725MC - hose, return power steering 49726 - washer, copper 49728 - collar, insulator 49728+A - collar, insulator 49728+B - collar, insulator 49728+C - collar, insulator 49728+D - collar, insulator 49728M - collar, insulator 49732M - bracket, power steering tube 49732MA - bracket, power steering tube 49732MB - bracket, power steering tube 49732MC - bracket, power steering tube

---

Applies for models	Manufacture period	Spec
2WD.CD20ET +CD20	01.1997 - 01.1998
2WD.CD20ET +CD20	01.1998 - ...

Open full screen picture Up to the top

083636165G 083636255G 089111062G 49020A - bolt 49020E - clip 49020EA - clip 49020F - insulator 49020FA - insulator 49020FD - insulator 49020FE - insulator 49020FF - insulator 49020FH - insulator 49020FJ - insulator 49020G - clamp 49020GB - clamp 49020GC - clamp 49020GE - clamp 49020GF - clamp 49020GG - clamp 49020GH - clamp 49020GJ - clamp 49020GK - clamp 49020GM - clamp 49125 - tank assembly, reservoir 49125P - insulator 49181 - cap assembly, pump 49182 - filter assembly, pump 49325X - port assembly, drain power steering 49455 - seal,O ring 49455+A - seal,O ring 49717M - hose assembly, suction power steering 49719 - tube assembly, power steering 49722M - hose & tube assembly, pressure PS 49723M - hose & tube assembly, power steering 49725M - hose, return power steering 49725MA - hose, return power steering 49725MB - hose, return power steering 49725MC - hose, return power steering 49726 - washer, copper 49728 - collar, insulator 49728+B - collar, insulator 49728+D - collar, insulator 49728M - collar, insulator 49732MB - bracket, power steering tube 49732MC - bracket, power steering tube 49781 - bracket, hose
